로봇의 ROS Navigaion Stack 구성



navigation/Tutorials/RobotSetup - ROS Wiki

Note: This tutorial assumes familiarity with ROS and how to use it. Please see ROS Documentation. If you want concise practical example of navigation on simulated robot, this tutorial provide excellent source. Please ask about problems and questions regard

wiki.ros.org

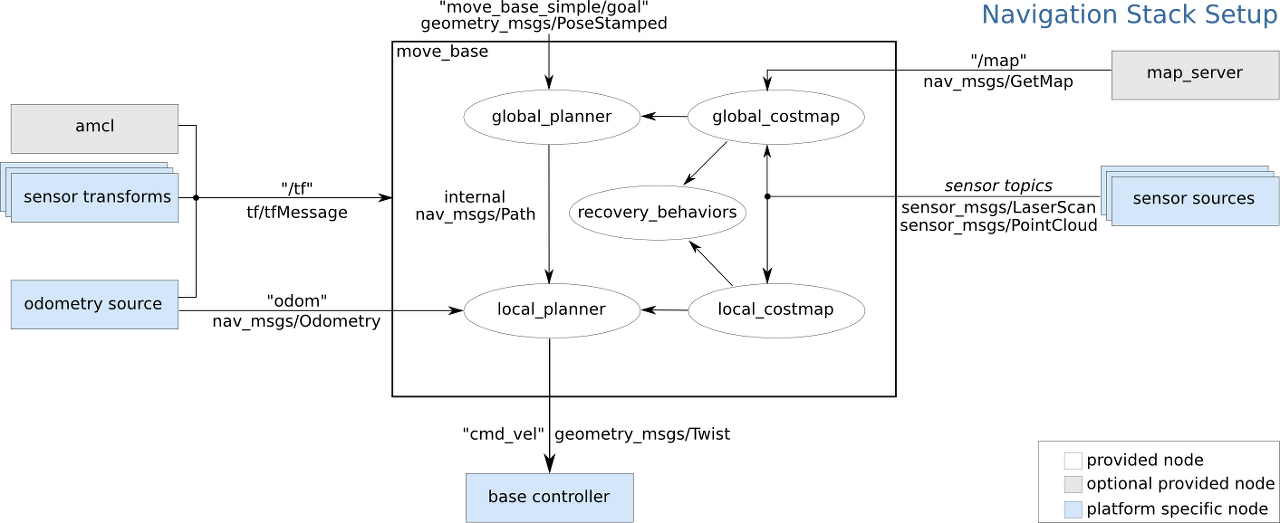

흰색은 반드시 미리 실행중이어야 하는 node, 회색은 선택적으로 미리 실행되는 node, 파란색은 각 robot platform마다 형성되어야 하는 node

- Prerequisite : Robot이 각 Navigation Stack에서 사용할 각 센서들로부터의 data ( ex) sensor_msgs/LaserScan)를 받아 TF를 통해 coordinate frame에 대한 정보를 publish해야 하며, TF, 그리고 base로 전송할 velocity command를 받으며  nav_msgs/Odometry message를 통해 odometry 정보를 publish해야 한다.





$ sudo apt install ros-noetic-navigation
  • ROS Navigation Stack 설치
$ rospack find amcl
  • 제대로 설치되었는지 확인
  • '/opt/ros/noetic/share/amcl' 가 출력되면 올바르게 설치가 된 것



- Package 생성

$ cd ~/catkin_ws/src
$ mkdir kusmo
$ cd /kusmo
$ catkin_create_pkg navstack rospy roscpp std_msgs tf tf2_ros geometry_msgs sensor_msgs nav_msgs move_base
  • catkin folder 로 이동 후 'kusmo_bot' 라는 이름의 폴더 생성
  • kusmo는 우리 팀의 이름
  • 생성한 폴더로 이동하여 navstack_pub라는 이름의 패키지 생성
  • navstack_pub가 package의 이름이고 뒤의 단어들은 dependency들을 의미



$ cd navstack
$ mkdir param
$ gedit CMakeLists.txt
  • 해당 패키지로 이동 후 param이라는 이름의 폴더 생성

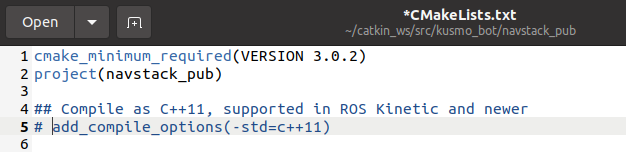

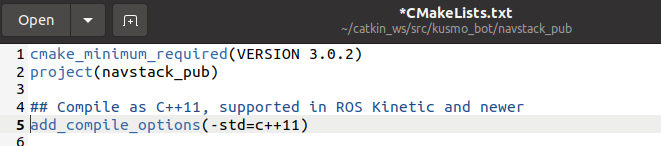

  • CMakeLists.txt 파일을 열고 C+11 사용을 위해 5번 줄의 '#' 제거



$ cd ~/catkin_ws/
$ catkin_make --only-pkg-with-deps navstack
  • Package를 compile
$ cd src/kusmo/navstack
$ mkdir launch
$ cd launch
$ gedit kusmo.launch

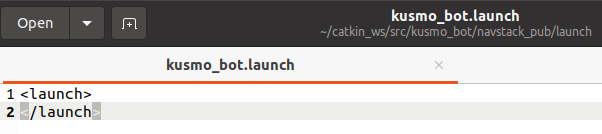

  • 새로운 터미널 창을 열고 navstack_pub 패키지로 이동하여 launch directory 생성
  • 해당 directory로 이동 후 launch 파일 생성
<launch>
</launch>



  • Navigation에 필요한 각종 정보들을 사용하기 위해 아래의 코드 입력
<launch>

  <!-- Transformation Configuration ... Setting Up the Relationships Between Coordinate Frames -->
  <node pkg="tf" type="static_transform_publisher" name="base_link_to_laser" args="0.06 0 0.08 0 0 0 base_link laser 30" />
  <node pkg="tf" type="static_transform_publisher" name="imu_broadcaster" args="0 0.06 0.02 0 0 0 base_link imu 30" />
  <node pkg="tf" type="static_transform_publisher" name="base_link_broadcaster" args="0 0 0.09 0 0 0 base_footprint base_link 30" />
  <!-- odom to base_footprint transform will be provided by the robot_pose_ekf node -->
  <!-- map to odom will be provided by the AMCL -->
  <node pkg="tf" type="static_transform_publisher" name="map_to_odom" args="0 0 0 0 0 0 map odom 30" />

  <!-- Wheel Encoder Tick Publisher and Base Controller Using Arduino -->
  <!-- motor_controller_diff_drive_2.ino is the Arduino sketch -->
  <!-- Subscribe: /cmd_vel -->
  <!-- Publish: /right_ticks, /left_ticks -->
  <node pkg="rosserial_python" type="serial_node.py" name="serial_node">
    <param name="port" value="/dev/ttyACM0"/>
    <param name="baud" value="115200"/>
  </node>

  <!-- Wheel Odometry Publisher -->
  <!-- Subscribe: /right_ticks, /left_ticks, /initial_2d -->
  <!-- Publish: /odom_data_euler, /odom_data_quat -->
  <node pkg="localization_data_pub" type="ekf_odom_pub" name="ekf_odom_pub">
  </node>

  <!-- IMU Data Publisher Using the BNO055 IMU Sensor -->
  <!-- Publish: /imu/data -->
  <node ns="imu" name="imu_node" pkg="imu_bno055" type="bno055_i2c_node" respawn="true" respawn_delay="2">
    <param name="device" type="string" value="/dev/i2c-1"/>
    <param name="address" type="int" value="40"/> <!-- 0x28 == 40 is the default for BNO055 -->
    <param name="frame_id" type="string" value="imu"/>
  </node>

  <!-- Extended Kalman Filter from robot_pose_ekf Node-->
  <!-- Subscribe: /odom, /imu_data, /vo -->
  <!-- Publish: /robot_pose_ekf/odom_combined -->
  <remap from="odom" to="odom_data_quat" />
  <remap from="imu_data" to="imu/data" />
  <node pkg="robot_pose_ekf" type="robot_pose_ekf" name="robot_pose_ekf">
    <param name="output_frame" value="odom"/>
    <param name="base_footprint_frame" value="base_footprint"/>
    <param name="freq" value="30.0"/>
    <param name="sensor_timeout" value="1.0"/>
    <param name="odom_used" value="true"/>
    <param name="imu_used" value="true"/>
    <param name="vo_used" value="false"/>
    <param name="gps_used" value="false"/>
    <param name="debug" value="false"/>
    <param name="self_diagnose" value="false"/>
  </node>

  <!-- Initial Pose and Goal Publisher -->
  <!-- Publish: /initialpose, /move_base_simple/goal -->

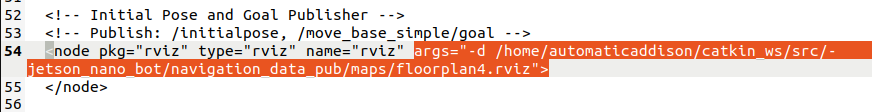

  <node pkg="rviz" type="rviz" name="rviz" args="-d /home/automaticaddison/catkin_ws/src/jetson_nano_bot/navigation_data_pub/maps/floorplan4.rviz">
  </node>

  <!-- Subscribe: /initialpose, /move_base_simple/goal -->
  <!-- Publish: /initial_2d, /goal_2d -->
  <node pkg="localization_data_pub" type="rviz_click_to_2d" name="rviz_click_to_2d">
  </node>

  <!-- Lidar Data Publisher Using RPLIDAR from Slamtec -->
  <!-- Used for obstacle avoidance and can be used for mapping -->
  <!-- Publish: /scan -->
  <node name="rplidarNode"          pkg="rplidar_ros"  type="rplidarNode" output="screen">
    <param name="serial_port"         type="string" value="/dev/ttyUSB0"/>
    <param name="serial_baudrate"     type="int"    value="115200"/><!--A1/A2 -->
    <!--param name="serial_baudrate"  type="int"    value="256000"--><!--A3 -->
    <param name="frame_id"            type="string" value="laser"/>
    <param name="inverted"            type="bool"   value="false"/>
    <param name="angle_compensate"    type="bool"   value="true"/>
  </node>

  <!-- Map File -->
  <arg name="map_file" default="$(find navigation_data_pub)/maps/floorplan4.yaml"/>

  <!-- Map Server -->
  <!-- Publish: /map, /map_metadata -->
  <node pkg="map_server" name="map_server" type="map_server" args="$(arg map_file)" />

  <!-- Add AMCL example for differential drive robots for Localization -->
  <!-- Subscribe: /scan, /tf, /initialpose, /map -->
  <!-- Publish: /amcl_pose, /particlecloud, /tf -->
  <include file="$(find amcl)/examples/amcl_diff.launch"/>

  <!-- Move Base Node -->
  <!-- Subscribe: /move_base_simple/goal -->
  <!-- Publish: /cmd_vel -->
  <node pkg="move_base" type="move_base" respawn="false" name="move_base" output="screen">
    <rosparam file="$(find navstack_pub)/param/costmap_common_params.yaml" command="load" ns="global_costmap" />
    <rosparam file="$(find navstack_pub)/param/costmap_common_params.yaml" command="load" ns="local_costmap" />
    <rosparam file="$(find navstack_pub)/param/local_costmap_params.yaml" command="load" ns="local_costmap" />
    <rosparam file="$(find navstack_pub)/param/global_costmap_params.yaml" command="load" ns="global_costmap" />
    <rosparam file="$(find navstack_pub)/param/base_local_planner_params.yaml" command="load" />
  </node>

</launch>

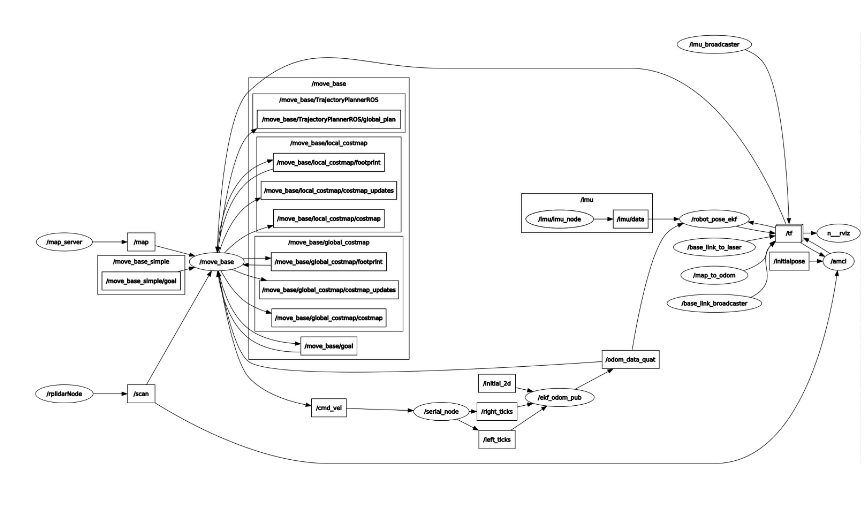

- Transformation / Costmap(Global and Local Costmaps) / Common(Global and Local Costmap) / Global / Local / Base Local Planner / AMCL Configuration,

Sensor / Lidar / Odometry / Mapping Information,

Base Controller, Move Base Node 설정

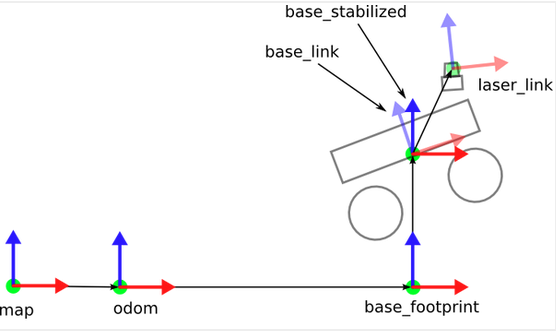

  • Transformation Configuration : Navigation stack을 사용하려면 로봇은 ROS의 tf package를 통해 coordinate frame간 관계에 대한 정보를 지속적으로 publish 해야 함

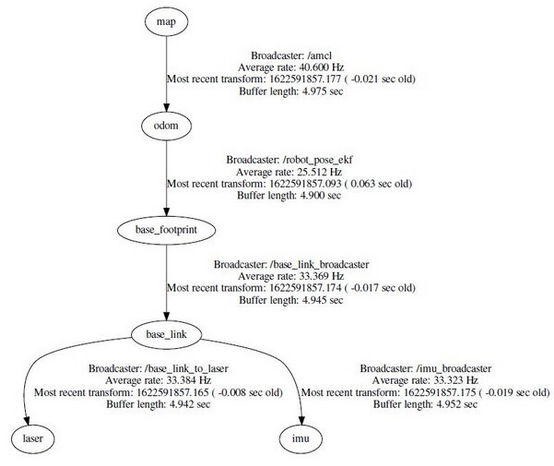

    • Transformation Tree는 서로 다른 coordinate frame들 사이의 회전과 평행 이동(x, y, z축)에 대한 offset들을 정의한다
    • Laser 정보는 Lidar를 통해서 받는데 Lidar와 로봇의 중심간에 거리차이가 있을 경우 tf를 통해 해당 거리차이만큼의 offset을 정의한다
  • Costmap Configuration (Global and Local Costmaps) : ROS Navigation Stack은 현실 세계에 있는 장애물에 대한 정보를 아래의 두 costmap들에 저장하며, 이 costmap들은 .yaml 파일에 구성되어야 한다
    • Global costmap: 사용자가 생성한 static map(SLAM을 통해 생성된 지도)으로부터 만들어지며 Global Planner경로를 계산하기 위해 사용한다. Static map에 의해 제공된 너비, 높이, 장애물의 정보에 맞게 초기화되어 amcl등의 localization system과 함께 조합된다
      • Global costmap은 새로운 장애물이 나타난다거나 하는 등의 환경이 바뀌더라도 바뀌지 않음
    • Local costmap: 로봇의 센서 데이터로부터 만들어지며 Local Plannerlocal plan을 계산하기 위해 사용한다. 로봇이 움직임에 따라 같이 움직이며 실시간으로 장애물에 대한 정보를 얻는다
      • Local plannerGlobal planner가 계산한 경로를 분할한 후 실행하며, Global planner 와 달리 odometry와 laser data를 계속 확인하고, 충돌이 없는 local plan을 선택함
      • Local planner는 로봇의 충돌을 피하기 위해 경로를 즉시 수정할 수 있다. Local plan/local_plan topic으로 publish 됨
      • Local plan은 Global plan의 일부분
  •  Costmap은 각 cell들이 특정한 값(cost)를 부여받는 grid map으로, 값이 클수록 로봇과 장애물 사이의 거리가 가까움을 의미한다. 일반적으로 각 cell들은 0~255의 binary값을 가지며, 그 중 자주 사용되는 값들이 있다
    • 255 = NO_INFORMATION : 충분한 정보가 없어 보류된 cell
    • 254 = LETHAL_OBSTACLE: 충돌이 일어나는 장애물이 있는 cell
    • 253 = INSCRIBED_INFLATED_OBSTACLE: 장애물은 없으나 해당 cell이 로봇의 중심에 가면 충돌이 일어날 수 있는 cell
    • 128 ~ 252 = 충돌이 일어날 가능성이 있는 cell
    • 0 = FREE_SPACE: 장애물이 없는 cell

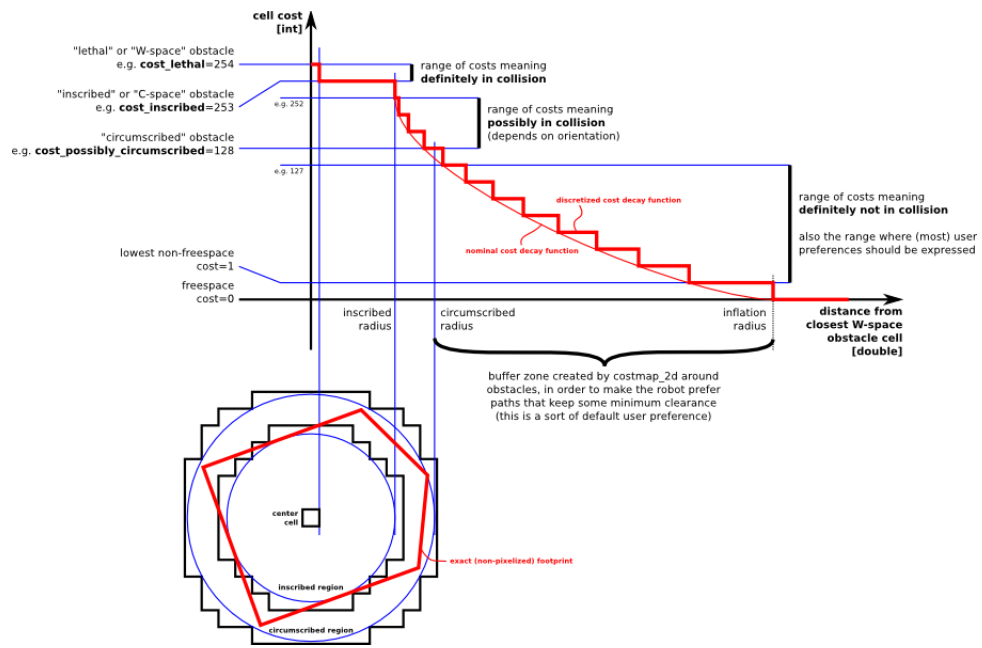

거리에 따라 감소하는, cell들이 갖는 cost값의 전파 과정인 inflation에 대한 그림. 출처 : http://wiki.ros.org/costmap_2d



  • Common Configuration : global / local costmap이 모두 다 사용하는 parameter들 구성
$ cd ~/catkin_ws
$ roscd navstack_pub
$ cd param
$ gedit costmap_common_params.yaml
  • navstack_pub 패키지로 이동하여 costmap_common_params.yaml 생성
  • 그 후 아래 내용들 입력
obstacle_range: 0.5
raytrace_range: 0.5
footprint: [[-0.14, -0.14], [-0.14, 0.14], [0.14, 0.14], [0.14, -0.14]]
map_topic: /map
subscribe_to_updates: true
global_frame: odom		# costmap이 작동할 때의 global frame. /map이 기본값
robot_base_frame: base_link
update_frequency: 30.0
publish_frequency: 30.0
rolling_window: false	# costmap의 rolling window version 사용 여부를 결정
# static_map parameter가 true이면 이 parameter는 false이어야 함
# rolling window 사용시 주행 환경을 costmap을 통해 전체적으로 나타내지 않고
# 로봇 주변의 반경 일부만 나타냄

plugins:	# costmap_2d layer에 사용되는 plugin의 parameter namespace 정의를 위해 사용
# ROS는 layer를 통해 parameter들을 분리함
  - {name: static_layer, type: "costmap_2d::StaticLayer"}
  - {name: obstacle_layer, type: "costmap_2d::ObstacleLayer"}
  - {name: inflation_layer, type: "costmap_2d::InflationLayer"}

static_layer:
  map_topic: /map
  subscribe_to_updates: false

obstacle_layer:
    observation_sources: laser_scan_sensor
    laser_scan_sensor: {sensor_frame: laser, data_type: LaserScan, topic: scan, marking: true, clearing: true}

inflation_layer:
  inflation_radius: 0.2



  • Global Configuration(Global Costmap) : Global costmap이 사용하는 parameter들 구성
$ cd ~/catkin_ws
$ roscd navstack_pub
$ cd param
$ gedit global_costmap_params.yaml
  • navstack_pub 패키지로 이동하여 global_costmap_params.yaml 생성
  • 그 후 아래 내용들 입력
global_costmap:
  global_frame: odom
  update_frequency: 30.0
  publish_frequency: 30.0
  transform_tolerance: 0.2
  resolution: 0.1



  • Local Configuration(Local Costmap) : Local costmap이 사용하는 parameter들 구성
$ cd ~/catkin_ws
$ roscd navstack_pub
$ cd param
$ gedit local_costmap_params.yaml
  • navstack_pub 패키지로 이동하여 global_costmap_params.yaml 생성
  • 그 후 아래 내용들 입력
local_costmap:
  update_frequency: 30.0
  publish_frequency: 30.0
  transform_tolerance: 0.2
  static_map: false		# costmap을 초기화 할 때 static map 사용 여부를 결정
  rolling_window: true
  resolution: 0.1
  inflation_radius: 0.1
  width: 1.0
  height: 1.0

  plugins:
    - {name: obstacle_layer, type: "costmap_2d::ObstacleLayer"}

  obstacle_layer:
    observation_sources: laser_scan_sensor
    laser_scan_sensor: {sensor_frame: laser, data_type: LaserScan, topic: scan, marking: true, clearing: true}



  • Base Local Planner Configuration : Base local planner는 robot base controller로 보내진 velocity commands를 계산하는 패키지로써, Global plan을 계산하고 실행하기 위해 Trajectory RolloutDWA(Dynamic Window Approaches) 알고리즘을 제공하는 패키지이다.
    • Trajectory Rollout은 로봇의 가속도 제한 내에서 주어진 모든 시뮬레이션에 걸친 속도의 집합을 sampling 하는 반면, DWA는 한 스텝의 시뮬레이션만을 사용함
  • base_local_planner 패키지에 사용되는 값들은 어떤 로봇을 사용하냐에 따라 달라짐
$ cd ~/catkin_ws
$ roscd navstack_pub
$ cd param
$ gedit base_local_planner_params.yaml
  • navstack_pub 패키지로 이동하여 base_local_planner_params.yaml 생성
  • 그 후 아래 내용들 입력
TrajectoryPlannerROS:
  max_vel_x: 0.12
  min_vel_x: 0.11
  #max_vel_theta: 0.05
  #min_vel_theta: -0.05
  #min_in_place_vel_theta: 0.05

  #acc_lim_theta: 0.07
  #acc_lim_x: 0.25
  #acc_lim_Y: 0.25

  holonomic_robot: false

  meter_scoring: true

  xy_goal_tolerance: 0.15
  yaw_goal_tolerance: 0.25



  • AMCL Configuration : ROS Navigation Stack은 AMCL (Adaptive Monte Carlo Localization)이라는 probabilistic localization system을 사용해야 함.
    • AMCL : Particle Filter를 통해 localization을 수행하는 알고리즘 중 하나로써, 주어진 지도에 대해 로봇의 자세를 추적한다. Monte Carlo Localization의 변형이다
    • Monte Carlo Algorithm : 랜덤으로 점들을 무수히 만들고 그 점들의 갯수를 통해 면적을 구하는 알고리즘
  • Map, Lidar 스캔값, transformation messages를 입력으로 받고 위치 추종을 결과로 내보낸다
  • amcl node는 아래 topic들을 subscribes 한다
    • /scan : Lidar로부터의 laser scan messages  (sensor_msgs / LaserScan)
    • /tf : 좌표계 변환 (tf / tfMessage)
    • /initialpose : Quaternions을 사용하여 로봇의 초기 위치와 회전값 표현 (geometry_msgs / PoseWithCovarianceStamped) - Rviz initial pose button이 이 topic에 publish를 함
    • /map :  Gmapping, Hector SLAM 혹은 이미지를 수동으로 사용하여 생성된 occupancy grid map (nav_msgs / OccupancyGrid)amcl node는 아래 topic들을 publish 한다
      • /amcl_pose : Map에서의 로봇의 추종된 자세 (geometry_msgs / PoseWithCovarianceStamped)
      • /particlecloud : 필터에 의해 유지되는 자세 추종의 집합 (geometry_msgs / PoseArray)
      • /tf (tf / tfMessage) : Publishes the transform from odom (which can be remapped via the ~odom_frame_id_parameter) to map
  • Sensor Information : Navigation Stack은 장애물을 피하기 위한 정보를 sensor가 ROS를 통해 publish하는 sensor_msgs/LaserScan 또는 sensor_msgs/PointCloud message를 통해 얻는다
  • Lidar Information :
  • Odometry Information : Navigation stack을 이용하려면 odometry 정보를 tfnav_msgs/Odometry meesage를 통해 publish 해야 한다
  • 이를 위해선 아래의 정보들이 필요하다
    • 바퀴 Encoder로부터의 data
    • IMU sensor로부터의 data
    • 바퀴 Encoder와 IMU sensor로부터의 data를 융합시키기 위해 확장된 Kalman Filter를 사용하는 robot_pose_ekf package

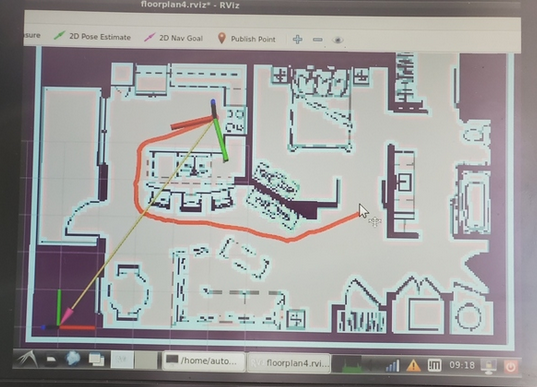

  • Mapping Information : Navigation Stack을 구동하기 위해 필수적인 요소는 아니나 있으면 로봇의 초기 자세와 목적지를 설정할 수 있다.
  • Lidar 혹은 image를 통해 map을 만들 수 있다

We need to delete this arguments



  • Base Controller : Navigation stack을 사용하기 위해선 로봇의 기본 coordinate frame을 기준으로 한 velocity command를 geometry_msgs/Twist message를 통해  "cmd_vel(velocity command)" topic을 subscribe하고 모터에 적합한 command로 변환시키는 node가 필요하다
  • Move Base Node : 위의 과정들을 통해 configuration file들을 생성하였다. 이제 그 file들을 launch file에 추가해야 한다. 그 file들은 Navigation Stack의 move_base node에 의해 쓰여질 것이다
    • move_base package는 action의 구현을 제공한다
    • move_base node는 로봇을 현재의 위치에서 목표 위치로 움직이는 기능을 하는, Navigation 과정에서 발생하는 모든 요소들을 이어주는 ROS Navigtion Stack에서 매우 중요한 요소 중 하나이다. 충돌위험이 없는 경로를 계획하는데 중요한 역할을 한다
  • move_base node는 아래의 topic들을 subscribe한다 :
    • /move_base_simple/goal : 목표 지점과 방향  (geometry_msgs::PoseStamped). 이 topic의 message들은 Rviz의 goal button으로 생성된다 Publisher는 아래의  topic들을 publish 한다 :
      • /cmd_vel : Linear and angular velocity command (geometry_msgs/Twist Message)위의 과정들을 완료했으면, 거의 다 온 것이다
$ cd ~/catkin_ws
$ catkin_make --only-pkg-with-deps navstack_pub
  • Package compile
  • 모터를 킨다
$ roslaunch navstack_pub jetson_nano_bot.launch
  • 새로운 터미널 창을 연 후 launch file을 실행시킨다
  • 필요한 경우 각 Rviz plugin들을 설정하여 지도와 costmap에서 로봇의 축이 보일 수 있게 한다
  • 2D Pose Estimate button을 눌러 로봇의 초기 자세를 설정한다
  • 2D Nav Goal button을 눌러 로봇에게 목적지를 부여한다
  • Rviz 화면에 아래와 같은 경로가 표시되고, 로봇이 경로를 따라가기 시작한다

planned path automatically drawn on the map



$ rosrun tf view_frames
$ evince frames.pdf
  • 새로운 터미널을 열어 tf tree를 보여주는 명령어를 입력한다
  • 결과는 아래와 같다





ROS Navigation Stack을 사용하는 mobile 로봇의 standard coordinate frames





$ rqt_graph
  • node graph 표시 명령어

  • 위의 모든 과정이 완료됐으면, ROS Navigation Stack 설정과 구동이 끝난 것이다





로봇의 ROS Navigaion Stack 구성

$ cd ~/catkin_ws/src/kusmo_bot
$ catkin_create_pkg localization_data_pub rospy roscpp std_msgs tf tf2_ros geometry_msgs sensor_msgs nav_msgs
$ cd ~/catkin_ws
$ catkin_make --only-pkg-with-deps localization_data_pub
  • kusmo_bot 폴더에 localization_data_pub package 생성 후 compile



$ cd /src/kusmo_bot/localization_data_pub
$ geit CMakeLists.txt
  • CMakeLists.txt 실행 후 5번째 줄의 해시태그를 제거하여 C++11 사용을 가능하게 함



아래의 두 topic들을 publish하는 node를 생성

  • /initial_2d : odometry publisher가 subscribe하는 topic (geometry_msgs/PoseStamped)
  • Navigation stack의 localization system을 통해 실제 로봇의 pose를 설정할 수 있게 함
  • /goal_2d : 후에 생성할 path planner node가 subscribe할 topic (geometry_msgs/PoseStamped)
  • Robot의 목표 pose를 설정하여 navigation에 goal을 보낼 수 있게 함



$ cd ~/catkin_ws/src/kusmo_bot/localization_data_pub/src
$ gedit rviz_click_to_2d.cpp
  • localization package의 src 폴더로 이동하여 rviz_click_to_2d.cpp 파일 생성 후 아래 코드 입력
#include "ros/ros.h"
#include "geometry_msgs/PoseStamped.h"
#include "geometry_msgs/PoseWithCovarianceStamped.h"
#include <tf/transform_broadcaster.h>
#include <iostream>

using namespace std;

// Initialize ROS publishers
ros::Publisher pub;
ros::Publisher pub2;

// Take move_base_simple/goal as input and publish goal_2d
void handle_goal(const geometry_msgs::PoseStamped &goal) {
geometry_msgs::PoseStamped rpyGoal;
rpyGoal.header.frame_id = "map";
rpyGoal.header.stamp = goal.header.stamp;
rpyGoal.pose.position.x = goal.pose.position.x;
rpyGoal.pose.position.y = goal.pose.position.y;
rpyGoal.pose.position.z = 0;
tf::Quaternion q(0, 0, goal.pose.orientation.z, goal.pose.orientation.w);
tf::Matrix3x3 m(q);
double roll, pitch, yaw;
m.getRPY(roll, pitch, yaw);
rpyGoal.pose.orientation.x = 0;
rpyGoal.pose.orientation.y = 0;
rpyGoal.pose.orientation.z = yaw;
rpyGoal.pose.orientation.w = 0;
pub.publish(rpyGoal);
}

// Take initialpose as input and publish initial_2d
void handle_initial_pose(const geometry_msgs::PoseWithCovarianceStamped &pose) {
geometry_msgs::PoseStamped rpyPose;
rpyPose.header.frame_id = "map";
rpyPose.header.stamp = pose.header.stamp;
rpyPose.pose.position.x = pose.pose.pose.position.x;
rpyPose.pose.position.y = pose.pose.pose.position.y;
rpyPose.pose.position.z = 0;
tf::Quaternion q(0, 0, pose.pose.pose.orientation.z, pose.pose.pose.orientation.w);
tf::Matrix3x3 m(q);
double roll, pitch, yaw;
m.getRPY(roll, pitch, yaw);
rpyPose.pose.orientation.x = 0;
rpyPose.pose.orientation.y = 0;
rpyPose.pose.orientation.z = yaw;
rpyPose.pose.orientation.w = 0;
pub2.publish(rpyPose);
}

int main(int argc, char **argv) {
ros::init(argc, argv, "rviz_click_to_2d");
ros::NodeHandle node;
pub = node.advertise<geometry_msgs::PoseStamped>("goal_2d", 0);
pub2 = node.advertise<geometry_msgs::PoseStamped>("initial_2d", 0);
ros::Subscriber sub = node.subscribe("move_base_simple/goal", 0, handle_goal);
ros::Subscriber sub2 = node.subscribe("initialpose", 0, handle_initial_pose);
ros::Rate loop_rate(10);
while (ros::ok()) {
ros::spinOnce();
loop_rate.sleep();
}
return 0;
}



$ cd ..
$ gedit CMakeLists.txt
  • 이전directory로 이동하여  CMakeLists.txt 파일을 열고 아래 내용을 마지막 부분에 입력



INCLUDE_DIRECTORIES(/usr/local/lib)
LINK_DIRECTORIES(/usr/local/lib)

add_executable(rviz_click_to_2d src/rviz_click_to_2d.cpp)
target_link_libraries(rviz_click_to_2d ${catkin_LIBRARIES})



$ cd ~/catkin_ws
$ catkin_make --only-pkg-with-deps localization_data_pub
  • Package Compile



$ roscore
$ rosrun localization_data_pub rviz_click_to_2d
$ rviz
$ rostopic echo /initial_2d
$ rostopic echo /goal_2d
  • 정상 동작 확인



- Wheel Encoder Data를 통해 Odometry를 Publish하는 Publisher 생성

  • 해당 node는 아래의 topic들을 subscribe함
  • /right_ticks : 오른쪽 motor의 encoder로부터의 tick counts (std_msgs / Int16)
  • /left_ticks : 왼쪽 motor의 encoder로부터의 tick counts (std_msgs / Int16)
  • /initial_2d : Robot의 2D initial position과 방향
  • Publisher는 아래의 topic에 odometry data를 publish함
  • /odom_data_euler : 위치, 속도 estimate. orientation.z 변수는 yaw 각을 나타내는 Euler angle (nav_msgs/Odometry)
  • /odom_data_quat : 위치, 속도 estimate. Orientation은 quaternion format으로 표현된다 (nav_msgs/Odometry)



$ cd ~/catkin_ws/src/kusmo_bot/localization_data_pub/src
$ gedit ekf_odom_pub.cpp
  • localization package로 이동하여 ekf_odom_pub.cpp 파일 생성 후 아래 코드 입력
#include "ros/ros.h"
#include "std_msgs/Int16.h"
#include <nav_msgs/Odometry.h>
#include <geometry_msgs/PoseStamped.h>
#include <tf2/LinearMath/Quaternion.h>
#include <tf2_ros/transform_broadcaster.h>
#include <cmath>

// Create odometry data publishers
ros::Publisher odom_data_pub;
ros::Publisher odom_data_pub_quat;
nav_msgs::Odometry odomNew;
nav_msgs::Odometry odomOld;

// Initial pose
const double initialX = 0.0;
const double initialY = 0.0;
const double initialTheta = 0.00000000001;
const double PI = 3.141592;

// Robot physical constants
const double TICKS_PER_REVOLUTION = 620; // For reference purposes.
const double WHEEL_RADIUS = 0.033; // Wheel radius in meters
const double WHEEL_BASE = 0.17; // Center of left tire to center of right tire
const double TICKS_PER_METER = 3100; // Original was 2800

// Distance both wheels have traveled
double distanceLeft = 0;
double distanceRight = 0;

// Flag to see if initial pose has been received
bool initialPoseRecieved = false;

using namespace std;

// Get initial_2d message from either Rviz clicks or a manual pose publisher
void set_initial_2d(const geometry_msgs::PoseStamped &rvizClick) {

odomOld.pose.pose.position.x = rvizClick.pose.position.x;
odomOld.pose.pose.position.y = rvizClick.pose.position.y;
odomOld.pose.pose.orientation.z = rvizClick.pose.orientation.z;
initialPoseRecieved = true;
}

// Calculate the distance the left wheel has traveled since the last cycle
void Calc_Left(const std_msgs::Int16& leftCount) {

static int lastCountL = 0;
if(leftCount.data != 0 && lastCountL != 0) {

int leftTicks = (leftCount.data - lastCountL);
if (leftTicks > 10000) {
leftTicks = 0 - (65535 - leftTicks);
}
else if (leftTicks < -10000) {
leftTicks = 65535-leftTicks;
}
else{}
distanceLeft = leftTicks/TICKS_PER_METER;
}
lastCountL = leftCount.data;
}

// Calculate the distance the right wheel has traveled since the last cycle
void Calc_Right(const std_msgs::Int16& rightCount) {

static int lastCountR = 0;
if(rightCount.data != 0 && lastCountR != 0) {

int rightTicks = rightCount.data - lastCountR;

if (rightTicks > 10000) {
distanceRight = (0 - (65535 - distanceRight))/TICKS_PER_METER;
}
else if (rightTicks < -10000) {
rightTicks = 65535 - rightTicks;
}
else{}
distanceRight = rightTicks/TICKS_PER_METER;
}
lastCountR = rightCount.data;
}

// Publish a nav_msgs::Odometry message in quaternion format
void publish_quat() {

tf2::Quaternion q;

q.setRPY(0, 0, odomNew.pose.pose.orientation.z);

nav_msgs::Odometry quatOdom;
quatOdom.header.stamp = odomNew.header.stamp;
quatOdom.header.frame_id = "odom";
quatOdom.child_frame_id = "base_link";
quatOdom.pose.pose.position.x = odomNew.pose.pose.position.x;
quatOdom.pose.pose.position.y = odomNew.pose.pose.position.y;
quatOdom.pose.pose.position.z = odomNew.pose.pose.position.z;
quatOdom.pose.pose.orientation.x = q.x();
quatOdom.pose.pose.orientation.y = q.y();
quatOdom.pose.pose.orientation.z = q.z();
quatOdom.pose.pose.orientation.w = q.w();
quatOdom.twist.twist.linear.x = odomNew.twist.twist.linear.x;
quatOdom.twist.twist.linear.y = odomNew.twist.twist.linear.y;
quatOdom.twist.twist.linear.z = odomNew.twist.twist.linear.z;
quatOdom.twist.twist.angular.x = odomNew.twist.twist.angular.x;
quatOdom.twist.twist.angular.y = odomNew.twist.twist.angular.y;
quatOdom.twist.twist.angular.z = odomNew.twist.twist.angular.z;

for(int i = 0; i<36; i++) {
if(i == 0 || i == 7 || i == 14) {
quatOdom.pose.covariance[i] = .01;
}
else if (i == 21 || i == 28 || i== 35) {
quatOdom.pose.covariance[i] += 0.1;
}
else {
quatOdom.pose.covariance[i] = 0;
}
}

odom_data_pub_quat.publish(quatOdom);
}

// Update odometry information
void update_odom() {

// Calculate the average distance
double cycleDistance = (distanceRight + distanceLeft) / 2;

// Calculate the number of radians the robot has turned since the last cycle
double cycleAngle = asin((distanceRight-distanceLeft)/WHEEL_BASE);

// Average angle during the last cycle
double avgAngle = cycleAngle/2 + odomOld.pose.pose.orientation.z;

if (avgAngle > PI) {
avgAngle -= 2*PI;
}
else if (avgAngle < -PI) {
avgAngle += 2*PI;
}
else{}

// Calculate the new pose (x, y, and theta)
odomNew.pose.pose.position.x = odomOld.pose.pose.position.x + cos(avgAngle)*cycleDistance;
odomNew.pose.pose.position.y = odomOld.pose.pose.position.y + sin(avgAngle)*cycleDistance;
odomNew.pose.pose.orientation.z = cycleAngle + odomOld.pose.pose.orientation.z;

// Prevent lockup from a single bad cycle
if (isnan(odomNew.pose.pose.position.x) || isnan(odomNew.pose.pose.position.y)
|| isnan(odomNew.pose.pose.position.z)) {
odomNew.pose.pose.position.x = odomOld.pose.pose.position.x;
odomNew.pose.pose.position.y = odomOld.pose.pose.position.y;
odomNew.pose.pose.orientation.z = odomOld.pose.pose.orientation.z;
}

// Make sure theta stays in the correct range
if (odomNew.pose.pose.orientation.z > PI) {
odomNew.pose.pose.orientation.z -= 2 * PI;
}
else if (odomNew.pose.pose.orientation.z < -PI) {
odomNew.pose.pose.orientation.z += 2 * PI;
}
else{}

// Compute the velocity
odomNew.header.stamp = ros::Time::now();
odomNew.twist.twist.linear.x = cycleDistance/(odomNew.header.stamp.toSec() - odomOld.header.stamp.toSec());
odomNew.twist.twist.angular.z = cycleAngle/(odomNew.header.stamp.toSec() - odomOld.header.stamp.toSec());

// Save the pose data for the next cycle
odomOld.pose.pose.position.x = odomNew.pose.pose.position.x;
odomOld.pose.pose.position.y = odomNew.pose.pose.position.y;
odomOld.pose.pose.orientation.z = odomNew.pose.pose.orientation.z;
odomOld.header.stamp = odomNew.header.stamp;

// Publish the odometry message
odom_data_pub.publish(odomNew);
}

int main(int argc, char **argv) {

// Set the data fields of the odometry message
odomNew.header.frame_id = "odom";
odomNew.pose.pose.position.z = 0;
odomNew.pose.pose.orientation.x = 0;
odomNew.pose.pose.orientation.y = 0;
odomNew.twist.twist.linear.x = 0;
odomNew.twist.twist.linear.y = 0;
odomNew.twist.twist.linear.z = 0;
odomNew.twist.twist.angular.x = 0;
odomNew.twist.twist.angular.y = 0;
odomNew.twist.twist.angular.z = 0;
odomOld.pose.pose.position.x = initialX;
odomOld.pose.pose.position.y = initialY;
odomOld.pose.pose.orientation.z = initialTheta;

// Launch ROS and create a node
ros::init(argc, argv, "ekf_odom_pub");
ros::NodeHandle node;

// Subscribe to ROS topics
ros::Subscriber subForRightCounts = node.subscribe("right_ticks", 100, Calc_Right, ros::TransportHints().tcpNoDelay());
ros::Subscriber subForLeftCounts = node.subscribe("left_ticks", 100, Calc_Left, ros::TransportHints().tcpNoDelay());
ros::Subscriber subInitialPose = node.subscribe("initial_2d", 1, set_initial_2d);

// Publisher of simple odom message where orientation.z is an euler angle
odom_data_pub = node.advertise<nav_msgs::Odometry>("odom_data_euler", 100);

// Publisher of full odom message where orientation is quaternion
odom_data_pub_quat = node.advertise<nav_msgs::Odometry>("odom_data_quat", 100);

ros::Rate loop_rate(30);

while(ros::ok()) {

if(initialPoseRecieved) {
update_odom();
publish_quat();
}
ros::spinOnce();
loop_rate.sleep();
}

return 0;
}



$ cd..
$ gedit CMakeLists.txt
  • CMakeLists를 열고 파일의 끝부분에 아래 내용 입력
add_executable(ekf_odom_pub src/ekf_odom_pub.cpp)
target_link_libraries(ekf_odom_pub ${catkin_LIBRARIES})



$ cd ~/catkin_ws
$ catkin_make --only-pkg-with-deps localization_data_pub
  • Package Compile



- ekf(Entended Kalman Filter) node 작성

  • 보다 정확한 estimate를 위해 Extended Kalman Filter를 사용 (robot_pose_ekf package 사용)
  • Robot이 움직임에 따른 위치와 방향을 보다 정확히 estimate하기 위해 필요한 improved된 odometry data를 생성하기 위해 odometry data (wheel Encoder의 tick counts + IMU sensor의 data)에 ekf를 적용
$ sudo apt-get install ros-noetic-robot-pose-ekf
$ cd ~/catkin_ws
$ catkin_make
  • robot_pose_ekf package 설치 후 compile



  • robot_pose_ekf node는 아래의 topic들을 subscribe함
  • /odom : wheel encoder의 tick count 정보로부터 얻은 위치와 속도 estimate .Orientation은 quaternion format임 (nav_msgs/Odometry)
  • /imu_data : IMU(Inertial Measurement Unit) sensor로부터의 data
  • robot_pose_ekf node는 아래의 topic들을 publish 함
  • /robot_pose_ekf/odom_combined : Filter의 output, robot의 3D estimated pose (geometry_msgs / PoseWIthCovarianceStamped)
  • robot_pose_ekf node가 /odom, /imu_data이름으로 된 topic을 필요로 하므로 launch file에서 /odom_data_quat와 /imu/data topic에서 오는 data를 remap해야 함



  • Navigation Stack의 launch file에 아래 내용 입력
<!-- Extended Kalman Filter from robot_pose_ekf Node-->
  <!-- Subscribe: /odom, /imu_data, /vo -->
  <!-- Publish: /robot_pose_ekf/odom_combined -->
  <remap from="odom" to="odom_data_quat" />
  <remap from="imu_data" to="imu/data" />
  <node pkg="robot_pose_ekf" type="robot_pose_ekf" name="robot_pose_ekf">
    <param name="output_frame" value="odom"/>
    <param name="base_footprint_frame" value="base_footprint"/>
    <param name="freq" value="30.0"/>
    <param name="sensor_timeout" value="1.0"/>
    <param name="odom_used" value="true"/>
    <param name="imu_used" value="true"/>
    <param name="vo_used" value="false"/>
    <param name="gps_used" value="false"/>
    <param name="debug" value="false"/>
    <param name="self_diagnose" value="false"/>
  </node>
















참고 자료 :

https://automaticaddison.com/how-to-set-up-the-ros-navigation-stack-on-a-robot/



How to Set Up the ROS Navigation Stack on a Robot – Automatic Addison

In this tutorial, we will learn how to set up and configure the ROS Navigation Stack for a mobile robot. The video below shows the final output you will be able to achieve once you complete this tutorial. What is the ROS Navigation Stack? The ROS Navigatio

automaticaddison.com

https://velog.io/@richard7714/ROS-Navigation-Navigation-Stack-%EC%84%A4%EC%A0%95%ED%95%98%EA%B8%B0



ROS Navigation - Navigation Stack 설정하기

http://wiki.ros.org/navigation/Tutorials/RobotSetup

velog.io

https://soohwan-justin.tistory.com/39



ROS Navigation(4. Path Planning 1)

이 포스트는 theconstructsim.com의 ROS Navigation in 5 Days 를 참고하였습니다. 이번 포스트에서 다룰 내용은 RViz에서 경로 계획(Path Planning)의 시각화 move_base node의 기본적인 개념 전역 경로 계획(Global Path

soohwan-justin.tistory.com

https://soohwan-justin.tistory.com/40



ROS Navigation(4. Path Planning 2)

이 포스트는 theconstructsim.com의 ROS Navigation in 5 Days 를 참고하였습니다. 이번 포스트에서 다룰 내용은 장애물 회피는 어떻게 작동하는가? local planner란? local costmap이란? path planning recap dynamic reconfigur

soohwan-justin.tistory.com

https://answers.ros.org/question/223880/what-is-rolling-window-used-for/



What is "Rolling Window" used for? - ROS Answers: Open Source Q&A Forum

What is "Rolling Window" used for? edit Hello~ all Recently I do some research about Robot Navigation. I'd like to find a way to save new map updated by Local Plan(Scan) while doing navigation. I found a interesting parameter "Rolling Window"...but no idea

answers.ros.org



728x90
반응형

'Project > KUSMO' 카테고리의 다른 글

[KUSMO] 11/19 (Motor Encoder Data Publisher)  (0) 2022.11.19
[KUSMO] 11/18 (IMU, RPLidar 케이블, rosserial-arduino)  (0) 2022.11.18
[KUSMO] 11/3 (rosserial)  (2) 2022.11.04
[KUSMO] 10/31 (진행 상황 정리)  (0) 2022.11.01
[KUSMO] 10/29  (0) 2022.10.29
